Sight Flow Indicators

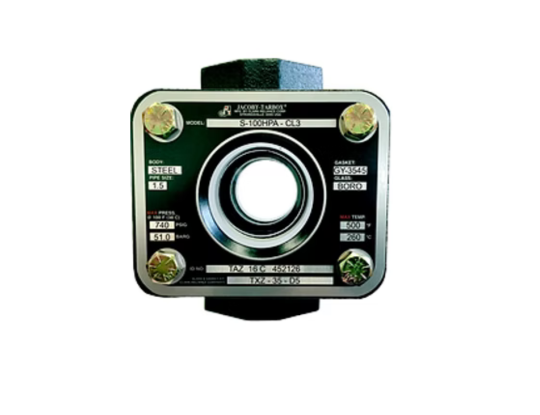

High Pressure Threaded Bulls-Eye Sight Flow Indicators

Models 300, 600, 900, and 1500 ASME Class

Jacoby-Tarbox’s full line of threaded bulls-eye sight flow indicators have been precisely engineered per the design criteria of ASME to provide a full ASME rated unit for flow observation and indication. Threaded bullseye sight flows have been engineered per the design criteria of the ASME B31.1 & B31.3 Power & Chemical Piping Codes, incorporating only ASTM listed metals in the unit’s construction. This standard-setting group of features includes full ASME code compliance with regards to yield criteria, materials, and pressure/temperature ratings.

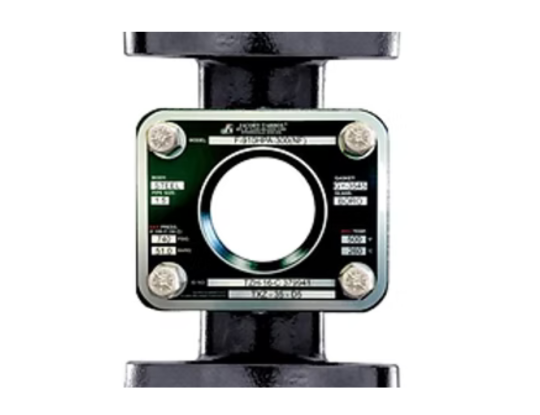

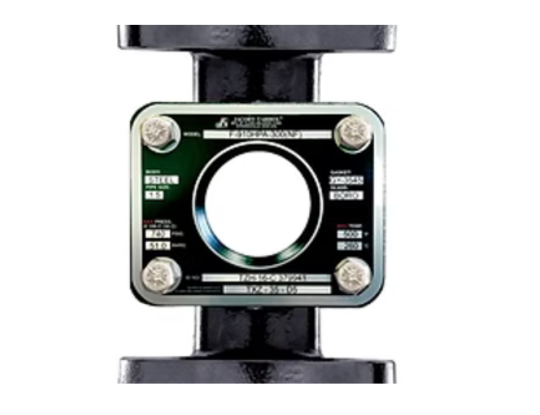

High Pressure Flanged Bulls-Eye Sight Flow Indicators

Models 300, 600, 900 & 1500 ASME Class

Features:

• Connections per ASME B16.5, B16.24, and B16.1
• Standard fasteners per ASTM A354 and ASTM A194 complying with most piping specifications
• Tempered borosilicate glass
• Units machined and assembled in an ISO-9001 fully automated facility
• Wetted components meet NACE MR-01-75 / ISO15156-1 requirements
• Stainless steel engraved identification faceplate

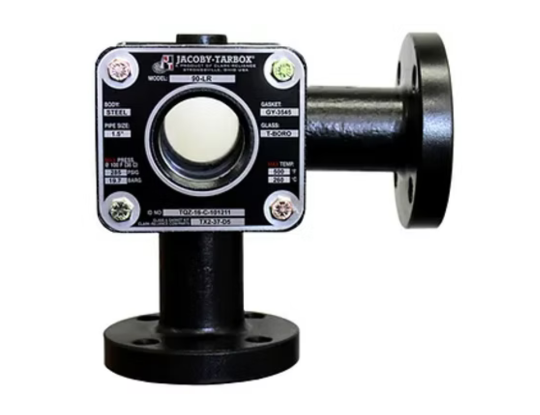

90° Flanged Sight Flow Indicators

Jacoby-Tarbox’s full ASME rated line of flanged bullseye sight flow indicators may be customized to include additional threaded or flanged connections. A sight flow indicator cast with 90-degree flanged connections is also available and can be customized.

Features:

• Flanged connections per ASME B16.5
• Threaded connections (male and female) per ASME B16.1
• 90° unit matches “take-out” or face-to-face of Class 150 & Class 300 long radius elbows
• Standard fasteners per ASTM A354 and ASTM A194
• Tempered borosilicate glass
• Units machined and assembled in an ISO-9001 fully automated facility
• Wetted components meet NACE MR-01-75 / ISO15156-1 requirements
• Stainless steel engraved identification faceplate

Cylindrical Sheathed Sight Flow Indicator

Jacoby-Tarbox Sheathed Tubular sight flow indicators allow for greater visibility than bulls-eye styles. These units include cylindrical glass similar to tubular models with the addition of a body to protect the glass and help isolate the unit from pipeline stresses.

Features:

• Increased visibility with cylinder protection from rigid, non-wetted body
• Pressure ratings are 150 psig (10.3 Bar) or less (varies by size)
• Stuffing box seal eliminates direct loading of glass

Sight Windows

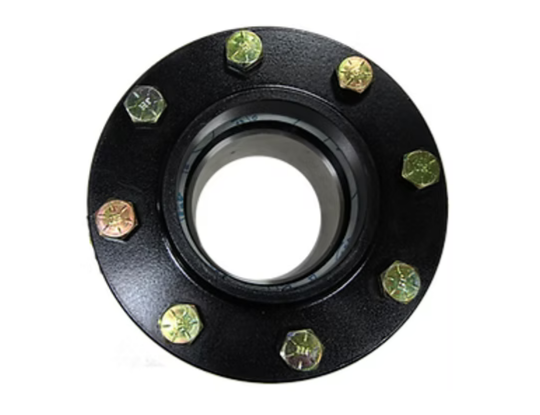

Weld-On Sight Windows for ASME Pressure Vessels
and non-ASME Applications

Jacoby-Tarbox Pressure Vessel Quality (PVQ) windows, circular and obround, are available manufactured in accordance with Section VIII of the ASME Boiler and Pressure Vessel Code. Weld pads are a proprietary size and designed to be self-reinforcing like any other studding outlet. Factory thicknesses work for most applications. Custom thicknesses are available to meet your vessel designer’s requirements. Non-ASME windows are available for lighter duty and piping applications.

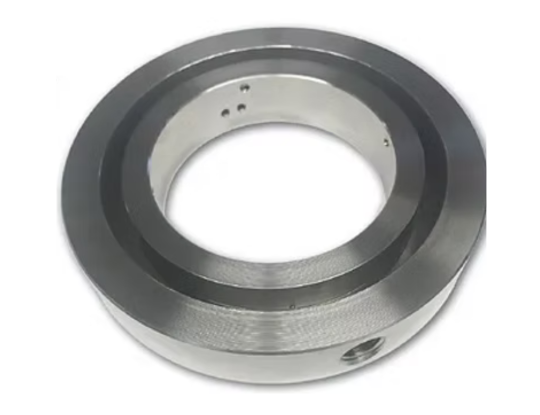

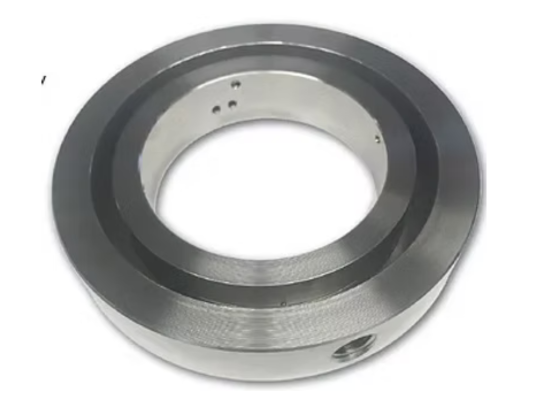

Drop-In Spray Ring
Flange-Mounted Sight Windows

Jacoby-Tarbox offers a full line of spray rings for installation directly against sight windows to direct secondary fluids (liquid or gas) against the window to remove debris.

Standard Features:

• Size Range: 2” through 10”
• ASME Flange Class: 150, 300, 600
• “Ring” style centered by bolting
• ¼” NPT Supply connection
• Material: 316 SS
• Maintains window rating
• Compound angle radial and cross jets

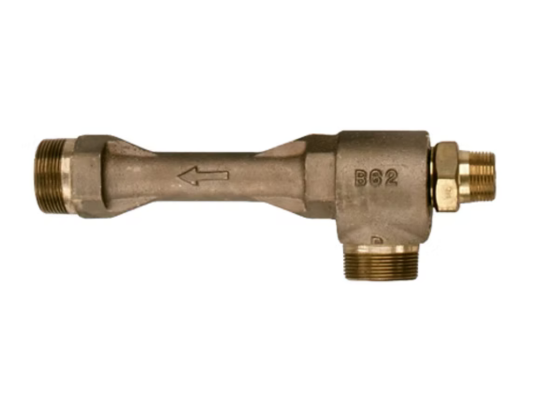

Eductors

Tank Liquid Agitators (TLAs)

The Jacoby-Tarbox Tank Liquid Agitator (JT TLA) is an eductor designed for “in-tank” applications. The TLA operates on the principle of flow dynamics. Pressurized fluid is accelerated through the nozzle to become a high velocity stream that entrains tank contents and intimately mixes with them. This combined stream exits the TLA at a high velocity, creating a flow field capable of causing additional agitation and mixing the tank contents.

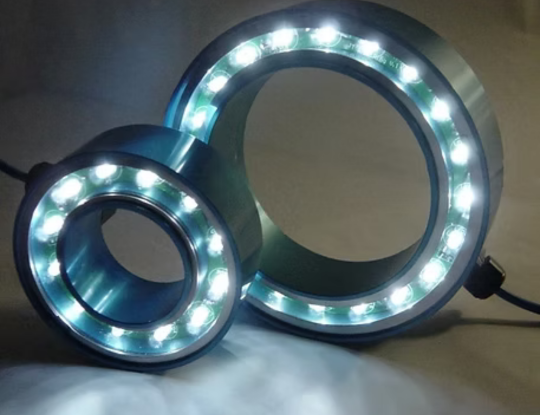

Lighting, Steam Jackets, and Accessories

Jacoby-Tarbox specializes in introducing new lighting technologies to the sight flow indicator and sight window industries. The Phaeton XTL is based on ultra high-intensity LED technology and easily illuminates large vessels, reactors, and large sight flow indicators with dark liquids.

Features:

• LEDs rated for 10 years continuous duty
• No switches or timers required
• Cool to touch
• Eliminates product “bake-on” and burn hazards
• Install on any manufacturer’s window without disassembly or affecting process
