VALVES

Ball Valves

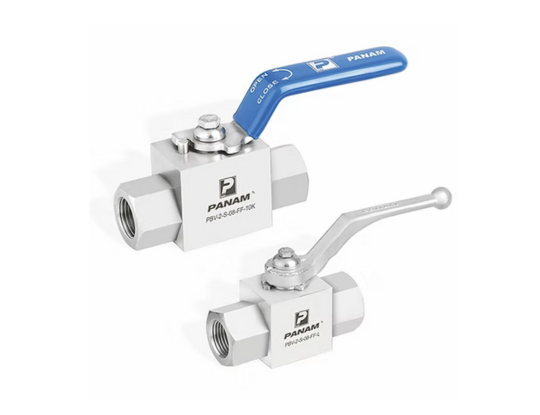

400 Series Ball Valves

400 Series Ball Valves

Features

  • PANAM 400 Series Ball Valves are available in 3 piece design.
  • Ball Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Floating ball design ensures leak proof shut-off at high pressure.
  • Size ranging from 1/8″ to 1″.
  • Delrin, PTFE, PEEK & KEL-F seat available.
  • Anti blow out internally loaded stem for safety.
  • Panel mount and lacking handle option available.
  • NACE certification available upon request.
  • Heat code traceability.

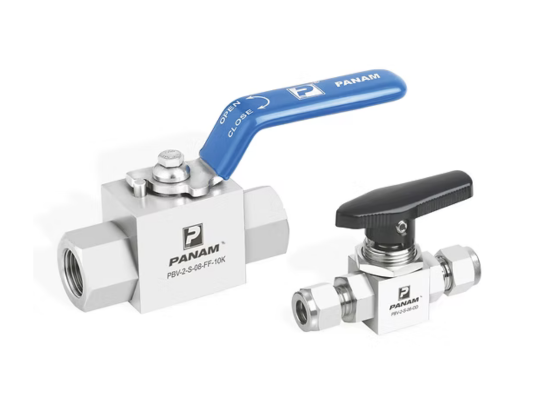

300 Series Ball Valves

300 Series Ball Valves

Features

  • Ball Valves are available in 2 and 3 T port & L port configurations.
  • Ball Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM® tube fittings.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Floating ball design ensures leak proof shut-off at high pressure.
  • Size ranging from 1/8″ to 1″.
  • Delrin, PTFE, PEEK & KEL-F seat available.
  • Anti blow out internally loaded stem for safety.
  • Panel mount and leaver handle option available.
  • NACE certification available upon request.
  • Heat code traceability.

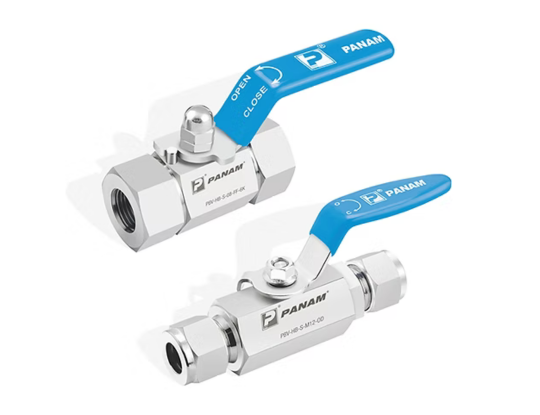

HB Series Ball Valves

HB Series Ball Valves

Features

  • Hex Body Ball Valves are available in Two-Piece Design for minimizing the leakage.
  • Ball Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM® tube fittings.
  • Working pressure 2000 psi (138 bar), 6000 psi (414 bar) & 10,000 psig. (689 bar).
  • Floating ball design ensures leak proof shut-off at high pressure.
  • Size ranging from 1/8″ to 1″.
  • Delrin, PTFE, PEEK & KEL-F seat available.
  • Anti blow out internally loaded stem for safety.
  • Locking handle option available in selected sizes.
  • NACE certification available upon request.
  • Heat code traceability.
Needle Valves

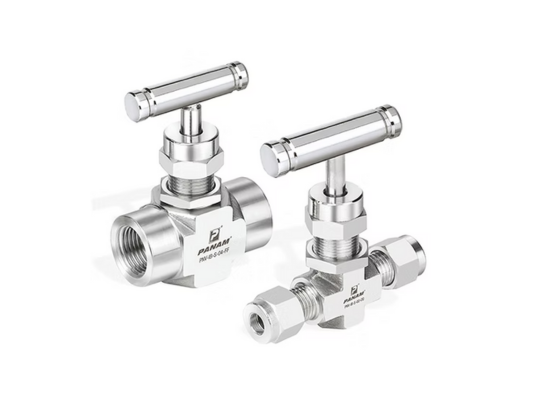

IB Series Needle Valves

IB Series Needle Valves

Features

  • PANAM IB (Integral Bonnet) Needle Valves.
  • IB Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials in forged & bar stock construction.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends & PANAM tube fittings.
  • Maximum working pressure up to 6,000 psig. (414 bar).
  • Size ranging from 1/8″ to 1/2”.
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature up to 538°C (1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

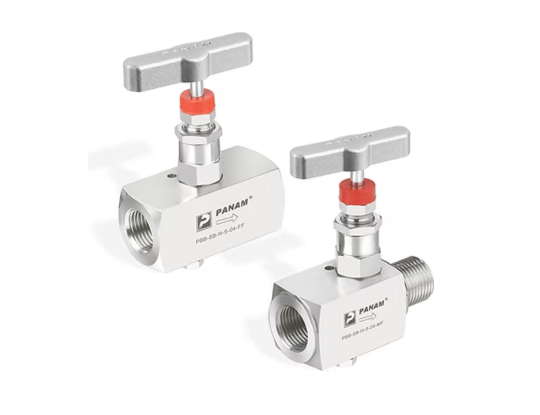

SB Series Needle Valves

SB Series Needle Valves

Features

  • PANAM SB Needle Valves are available in both Metal seat and Soft seat.
  • Needle valve can be used as Block & Bleed valves with vent.
  • Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials bar stock construction.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends & PANAM® tube fittings.
  • Maximum working pressure up to 10,000 psig. (690 bar).
  • Size ranging from 1/8″ to 1”.
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature upto 538°C (1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

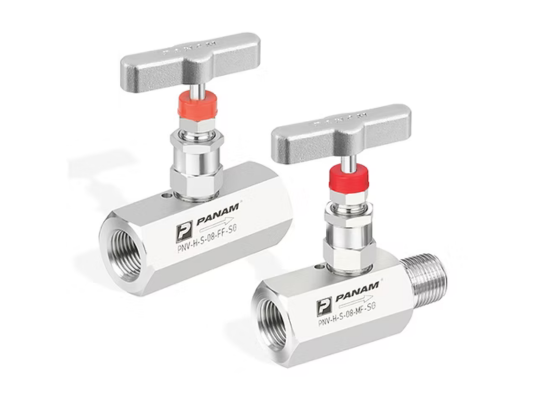

HB Series Needle Valves

HB Series Needle Valves

Features

  • PANAM HB Needle Valves are available in both Metal seat and Soft seat.
  • Needle valve can be used as Block & Bleed valves with vent.
  • Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials bar stock construction.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends & PANAM® tube fittings.
  • Maximum working pressure up to 10,000 psig. (690 bar).
  • Size ranging from 1/8″ to 1”.
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature upto 538°C (1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

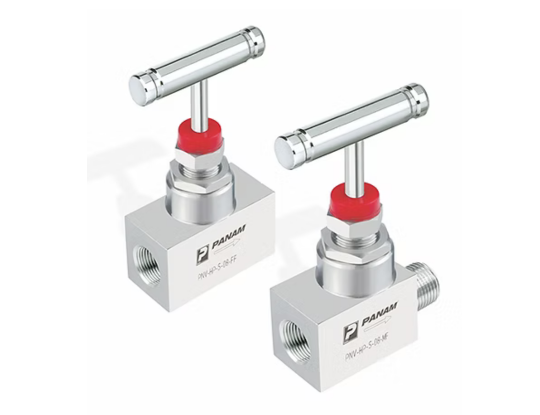

HP Series Needle Valves

HP Series Needle Valves

Features

  • Needle High Pressure Needle Valve is One piece design construction.
  • Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials in forged & bar stock construction.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends.
  • Maximum working pressure up to 10,000 psig. (690 bar).
  • Size ranging from 1/8″ to 3/4”.
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature upto 538°C (1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

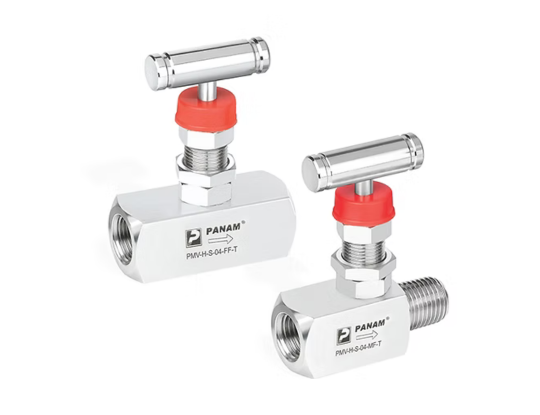

Mini Series Needle Valves

Mini Series Needle Valves

Features

  • Mini Series Needle Valves.
  • Needle Valves are available in SS 316, Duplex, Monel & Hastelloy Materials in forged & bar stock construction.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, ISO tapered pipe ends.
  • Maximum working pressure up to 3000 psig. (207 bar).
  • Size – 1/4″.
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature up to 538°C (1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

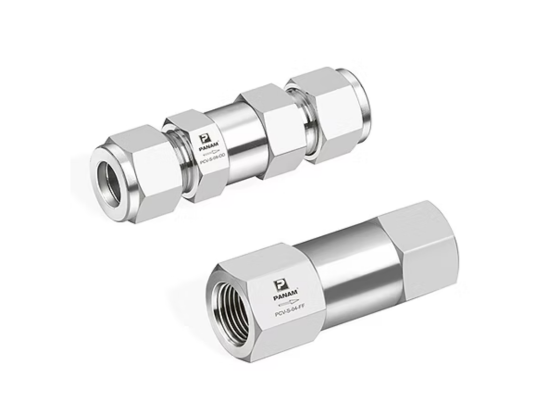

Check Valves (NRV)

Check Valves (NRV)

Features

  • Check Valves are available in SS316, Monel, Duplex & Hastelloy C Material.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT & PANAM Tube Fitting connection.
  • Maximum working pressure up to 10,000 psig. (690 bar).
  • Size ranging from 1/8″ to 1″.
  • Cracking Pressure 1/3, 1, 5, 10, 25, 50, 75 & 100 psig, others upon request.
  • NACE certification available upon request.
  • Heat code traceability.

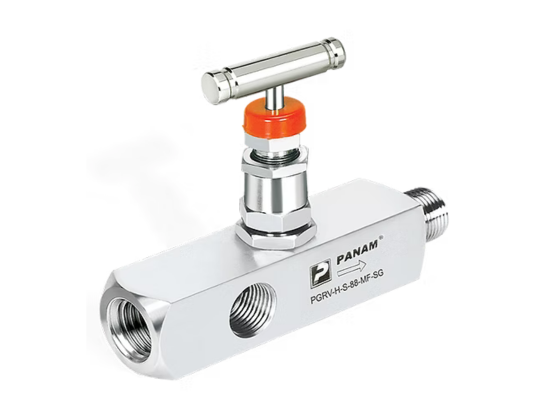

Gauge Root Valves

Gauge Root Valves

Features

  • PANAM Gauge Root Valves.
  • Gauge Root Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Size ranging from 1/2″ to 3/4”.
  • PTFE standard gland packing, Alternate graphoil packing for high temperature (up to 538°C / 1000°F).
  • Non-Rotating Vee-tip / ball tip provides repetitive & leak tight shut-off.
  • Available in soft seat.
  • NACE certification available upon request.
  • Heat code traceability.

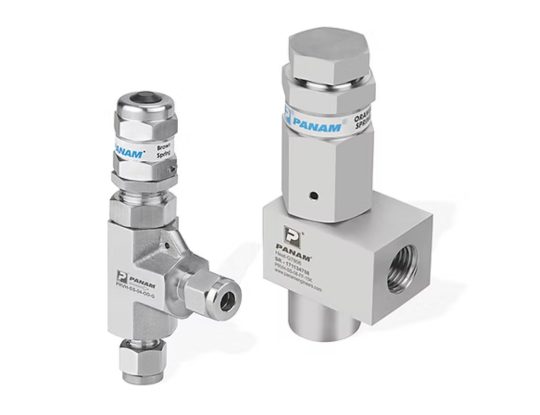

Relief Valves

Relief Valves

Features

  • Relief Valves are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT and PANAM Tube Fitting.
  • Maximum working pressure up to 15,000 psig. (1,034 bar).
  • Size ranging from 1/8″ to 1/2″ & 6mm OD to 12mm OD.
  • Standard Orifice 3.6mm & 4.8mm.
  • Relief pressure adjustable externally.
  • Lock wire feature secures a given pressure setting.
  • NACE certification available upon request.
  • Heat code traceability.

Fittings

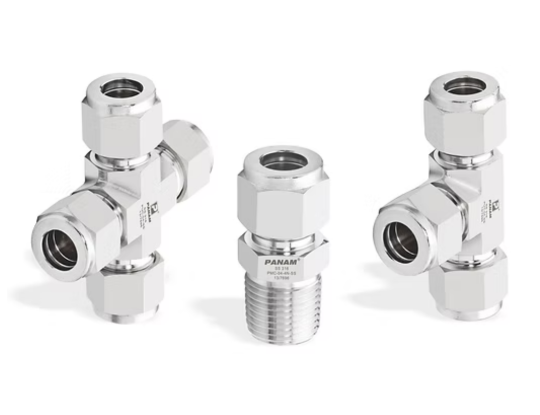

Tube Fittings

Tube Fittings

Features

  • PANAM Tube Fittings are available in Single & Double Ferrule Design.
  • Tube Fittings are available in SS 316, Duplex, Monel, Hastelloy & Brass Materials.
  • Variety of end connections, Male & Female NPT, BSPP, BSPT & 37° Flare.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Size ranging from 1/16″ to 2″ OD and 3mm to 50mm OD.
  • Low Torque.
  • Type Test to ASTM F 1387.
  • Leak tight connections, with standing high pressure.
  • NACE certification available upon request.
  • Heat code traceability.

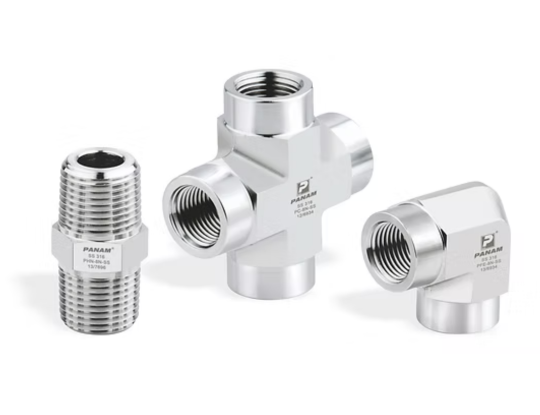

Pipe Fittings

Pipe Fittings

Features

  • PANAM Pipe Fittings are available in SS 316, Duplex, Super Duplex, Inconel, Monel & Hastelloy Materials.
  • Variety of end connections, Male & Female NPT, BSPP, BSPT & Tube / Pipe Socket Weld.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Size ranging from 1/8″ to 2”.
  • NACE certification available upon request.
  • Heat code traceability.

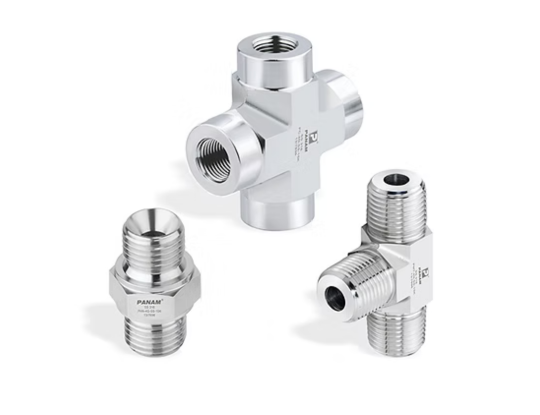

HP Pipe Fittings

HP Pipe Fittings

Features

  • PANAM High Pressure Fittings are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, 37° Flare, Swivel, JIC Swivel & Tube / Pipe Socket Weld.
  • Maximum working pressure up to 15,000 psig. (1,034 bar).
  • Size ranging from 1/16″ to 2″.
  • Leak tight connections, with standing high pressure.
  • NACE certification available upon request.
  • Heat code traceability.

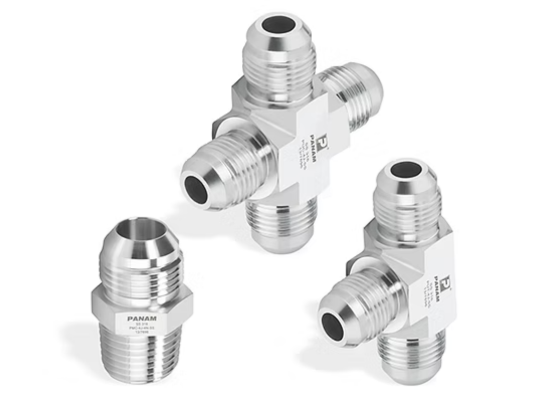

37° Flare Fittings (JIC)

37° Flare Fittings (JIC)

Features

  • PANAM Flare Fittings are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT, 37° Flare, Swivel & JIC Swivel.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Size ranging from 1/16″ to 2”.
  • Leak tight connections, with standing high pressure.
  • NACE certification available upon request.
  • Heat code traceability.

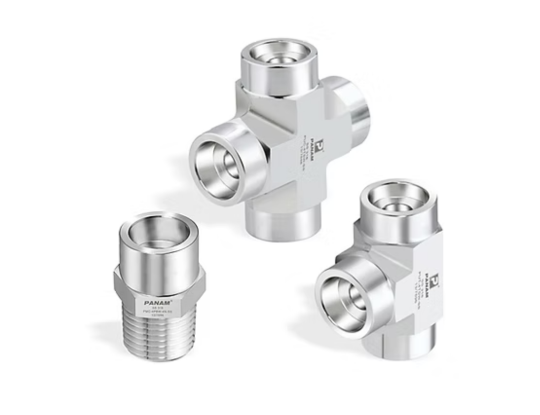

Weld Fittings

Weld Fittings

Features

  • PANAM Weld Fittings are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Male & Female NPT, BSPP, BSPT & Tube / Pipe Socket Weld.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Size ranging from 1/16″ to 2”.
  • Leak tight connections, with standing high pressure.
  • NACE certification available upon request.
  • Heat code traceability.

Manifolds

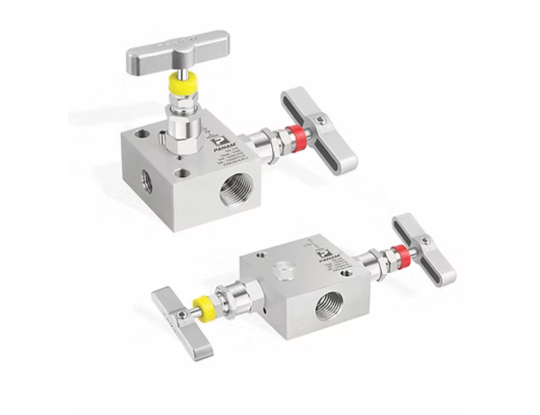

2 Valve Manifolds

2 Valve Manifolds

Features

  • PANAM 2 Valve Manifolds are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Available in various configurations such as pipe to pipe, pipe to flange and flange to flange.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature (up to 538°C / 1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

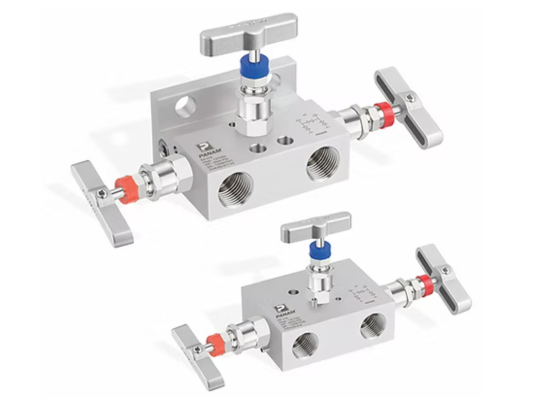

3 Valve Manifolds

3 Valve Manifolds

Features

  • PANAM 3 Valve Manifolds are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Available in various configurations such as pipe to pipe, pipe to flange and flange to flange.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature (up to 538°C / 1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

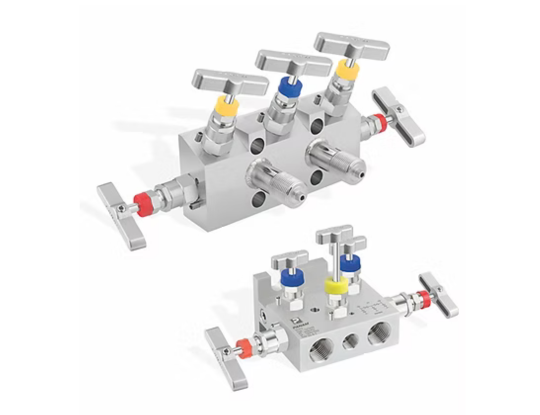

5 Valve Manifolds

5 Valve Manifolds

Features

  • PANAM 5 Valve Manifolds are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Available in various configurations such as pipe to pipe, pipe to flange and flange to flange.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • PTFE standard gland packing, Alternate Graphoil packing for high temperature (up to 538°C / 1000°F).
  • Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
  • NACE certification available upon request.
  • Heat code traceability.

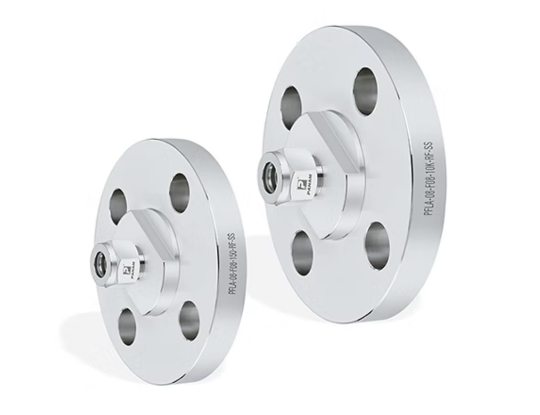

Flange Adaptors

Flange Adaptors

Flange Adaptors

Features

  • PANAM Flange Adapters are available in SS 316, Duplex, Monel & Hastelloy Materials.
  • Variety of end connections – Threaded, Flanged, Socket Weld.
  • Maximum working pressure up to 10,000 psig. (689 bar).
  • Available in Tube Fitting end connection up to 50mm in metric sizes & 2″ in imperial sizes.
  • Flange type meet ASME, DIN, EN and JIS standards. Full range of sealing faces including Flat Face, Raised Face, RTJ and Tongue and Groove.
  • NACE certification available upon request.
  • EN 10204 type 3.1B test certificates are supplied with materials.
  • Heat code traceability.

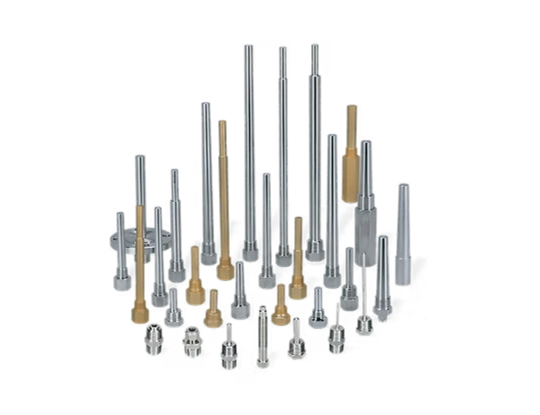

Thermowells

Thermowells

Thermowells

Features

  • PANAM Thermowells.
  • Thermowells are available in SS 316, Brass, Duplex, Monel & Hastelloy Materials.
  • Available in a variety of process connection sizes – Threaded, Tapered, Socket Weld, Weld-in, Raised Flanged.
  • Thermowells are available in U length from 2” to 41”.
  • Available in standard bore size and custom bore size.
  • Wake frequency calculation upon request.
  • NACE certification available upon request.
  • Heat code traceability.

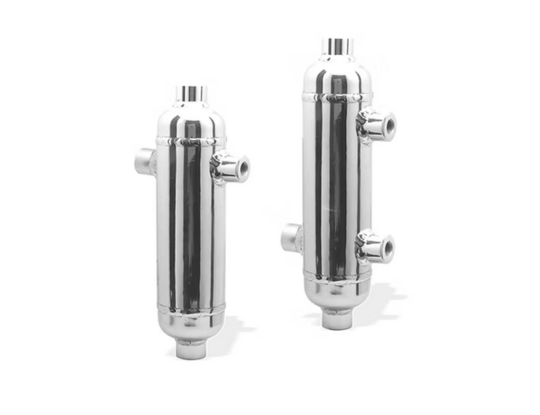

Condensate Pot

Condensate Pot

Condensate Pot

Features

  • PANAM Condensate Pots are available in SS 316 & Carbon Steel Materials.
  • Variety of end connections – Threaded, Flanged, Socket Weld.
  • Maximum working pressure up to 6,000 psig. (414 bar).
  • Size ranging from 1/2″ to 2″ – Class 150 to 2500.
  • All NPT threads as per ANSI B 2.1 & Socket Weld as per ANSI B 16.11.
  • Radiography testing & liquid penetrate testing of butt-weld joints as per ASME BPVC Section V.
  • NACE certification available upon request.
  • Heat code traceability.
