About Uni Gerate

UNI-Geräte is a manufacturer of more than 2,500 different types of solenoid and electro-pneumatic valves, as well as volume control butterfly valves, control gate valves and adjusting fittings. Their specialty are tailor-made special valves for your individual requirements and for all applications which cannot be covered by standard solutions.
UNI-Geräte valves have been used all over the world for more than six decades. All of them highly specialized – for burners, ovens, boilers or power plants and for media like gas, oil, air, water, molasses, fat and lime milk.

Valves for liquid media

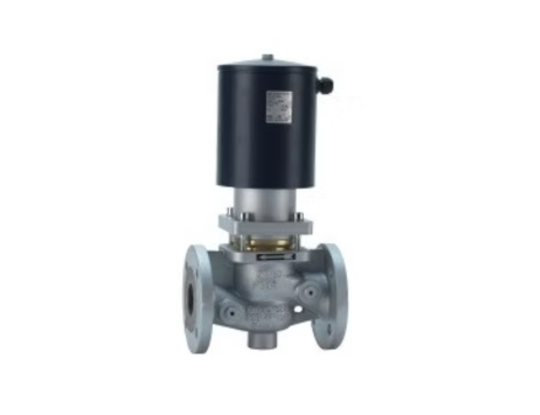

Application: liquid fuels, steam, hot water Products: Solenoid valves / electro-pneumatic valves

Model series: EVS...Ü with flange connection in accordance with
DIN ISO 23553-1

Normally closed NC
Nominal sizes: DN 15 to DN 150
For max. operating pressure of 4 bar (400 kPa) or 10 bar (1000 kPa)

EVS...Ü Flange Connection Valves

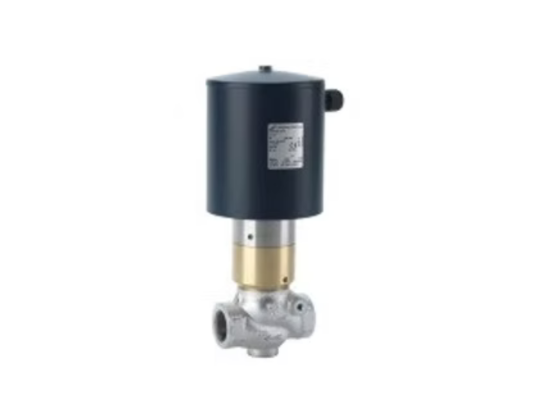

Model series: EVS...Ü with flange connection in accordance with DIN ISO 23553-1

Application: liquid fuels, steam, hot water
Products: Solenoid valves / electro-pneumatic valves

Normally closed NC
Nominal sizes: G1 / 4 to G2
For max. operating pressure of 4 bar (400 kPa) or 10 bar (1000 kPa)

EVS...Ü Flange Connection Valves

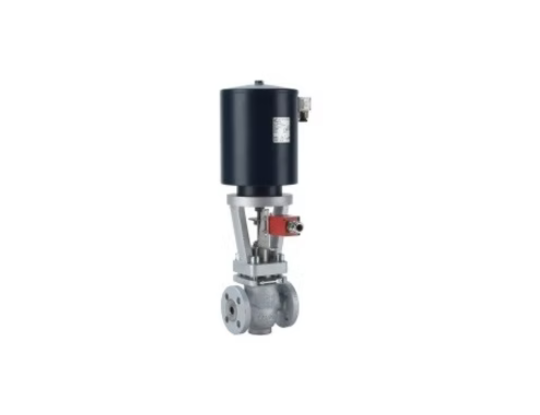

Model series: EV...Ü and EVF...Ü with flange connection in accordance with EN 264

Normally closed NC
Nominal sizes: DN 15 to DN 50
For various operating pressures of 5 bar (500 kPa) to 40 bar (4000 kPa)

EV and EVF EN 264 Valves

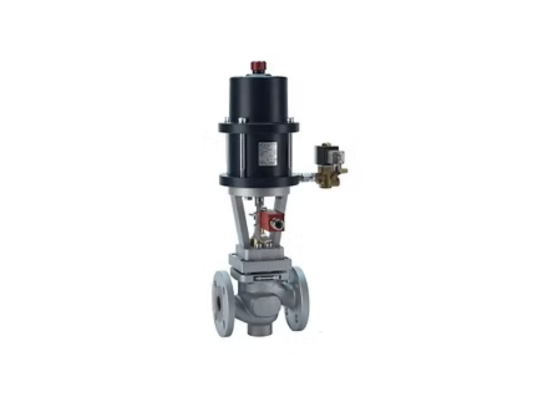

Model series: EPV...Ü and EPVF...Ü with flange connection in accordance with EN 264

Normally closed
Nominal sizes: DN 15 to DN 80
For max. operating pressure of 6 bar (600 kPa) to 40 bar (4000 kPa)

EPV and EPVF EN 264 Valves

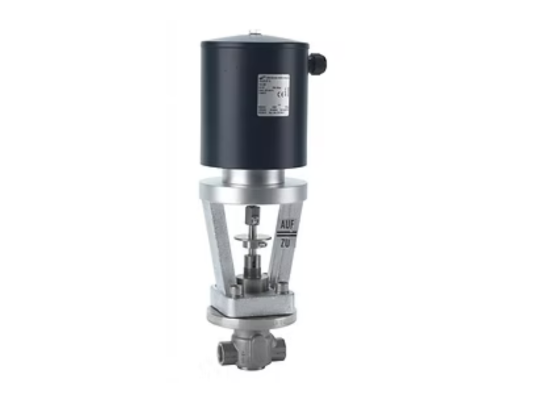

Application: aggressive gases or liquids, for neutral media

With the EV or EPV model series we supply valve solutions for a wide variety of applications, be it for aggressive gases or liquids, for neutral media, for temperatures up to + 200°C, or in nominal sizes from G1/4 to DN 150.

EV & EPV Valve Applications

Gas solenoid valve

Model series: EVA with flange connection in accordance with EN 161, class A

Normally closed NC
Nominal sizes: DN 15 to DN 200
For max. operating pressure of 0.2 bar (20 kPa) or 0.5 bar (50 kPa)

Model series: EVA with threaded connection in accordance with EN 161, class A

Normally closed NC
Nominal sizes: G1/4 to G2
For max. operating pressure of 0.3 bar (30 kPa) or 1 bar (100 kPa)

EVA EN 161 Class A Valves

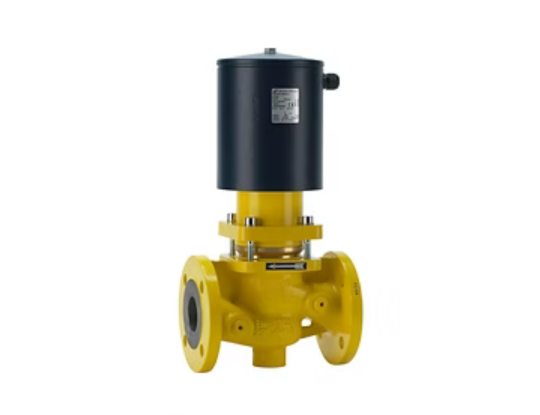

Model series: EVSA with flange connection in accordance with EN 161 or EN 16678

Normally closed NC
Nominal sizes: DN 15 to DN 150
For max. operating pressure of 4 bar (400 kPa) or 10 bar (1000 kPa)

Model series: EVSA with threaded connection in accordance with EN 161, class A or EN 16678

Normally closed NC
Nominal sizes: G1/4 to G2
For max. operating pressure of 4 bar (400 kPa) or 10 bar (1000 kPa)

Individual valve sizes are available for operating pressures of up to 40 bar (4000 kPa)
With individual acceptance also up to 50 bar (5000 kPa)

EVSA Valve Series

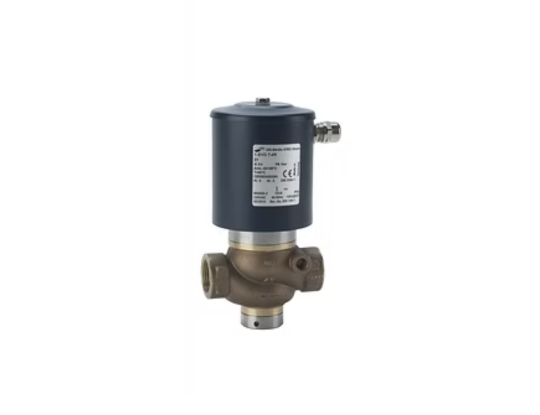

Model series: EVO and EVSO as normally open solenoid valves in accordance with EN 16678 and EN 16304



Nominal sizes: G1/4 to G1 and DN 15 to DN 50
For max. operating pressures of up to 40 bar (4000 kPa)

EVO and EVSO Valves

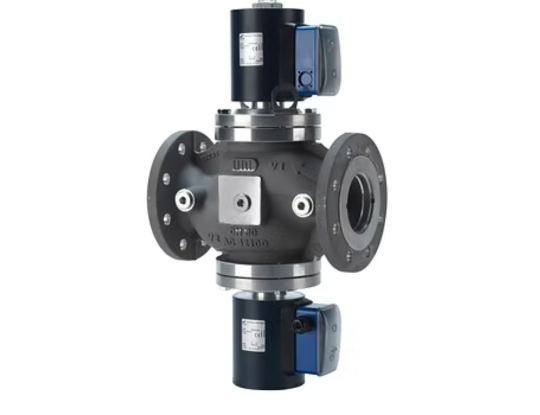

Model series: VX as double safety shut-off valve in accordance with EN 161, class A



Normally closed NC
Nominal sizes: DN 64, DN 80, DN 100 and DN 150
For max. operating pressure of 0.5 bar (50 kPa) or 5 bar (500 kPa)

EVO and EVSO Valves

Gas pneumatic valve

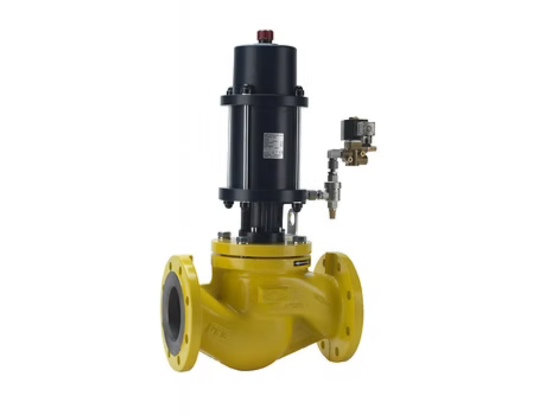

Model series: EPVA with flange connection in accordance with EN 161 and EN 16678

Normally closed NC
Nominal sizes: DN 15 to DN 400
For max. operating pressure of up to 10 bar (1000 kPa)

Model series: AEPV / EPVA with flange connection in accordance with EN 16678

Normally closed NC
Nominal sizes: DN 15 to DN 100
For max. operating pressure of up to 40 bar (4000 kPa)

EPVA Valve Series

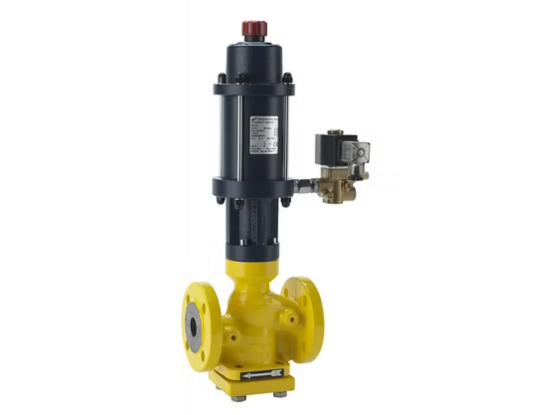

Model series: EPVO with threaded or flange connection in accordance with EN 16304 and EN 16678

Normally open NO
Nominal sizes: G 3/4, DN 15 to DN 65
For max. operating pressure of up to 10 bar (1000 kPa)

Individual valve sizes are available for operating pressures of up to 40 bar (4000 kPa).

EPVO Valve Series

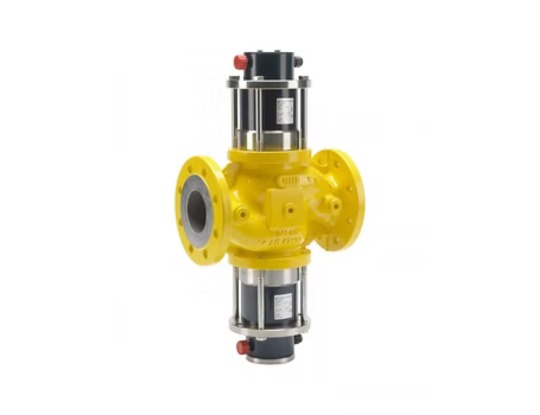

Model series: PX as double safety shut-off valve in accordance with EN 16678, class A

Normally closed NC
Nominal sizes: DN 50, DN 65, DN 80, DN 100 and DN 150
For max. operating pressure of up to 16 bar (1600 kPa)

PX Series Double Safety Shut-off Valve

Flow control valve

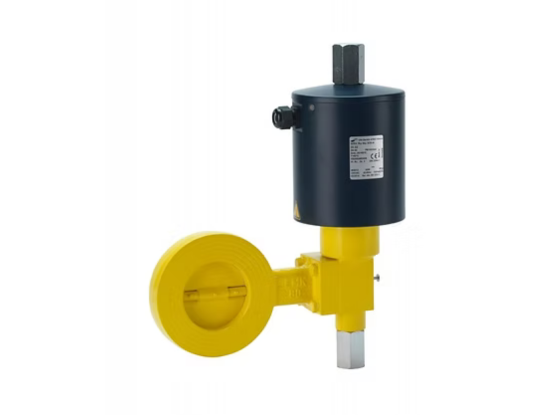

Model series MRK MA in accordance with EN 161 and EN 16678

Flow control butterfly valves with EU type examination certificate in accordance with gas appliance regulation EU/2016/426 for gaseous media such as natural gas or air.

Manual presetting for basic and main quantity
Temperature: up to 700°C depending on version
Nominal sizes: DN 15 - DN 400
Deliverable with electro-magnetic drive

MRK MA Butterfly Valves

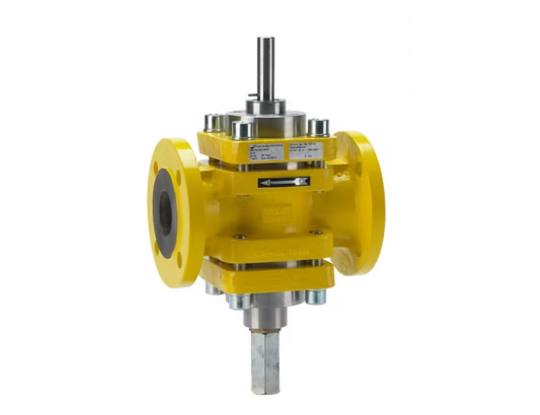

Model series MRS in accordance with EN 161 and EN 16678

Flow control slides with EU type examination certificate in accordance with gas appliance regulation EU/2016/426 for gaseous fluids

Control range: up to 20:1
Manual presetting of the maximum flow rate
Nominal sizes: DN 15 - DN 200
For operating pressures of up to 10 bar (1000 kPa)

MRS Flow Control Slides

Model series MEA in accordance with EN 13611 and EN 16678

Flow control valves with EC type examination certificate in accordance with gas appliance regulation EU/2016/426

For manual presetting of flow control in furnace technology
Used for media such as air, combustion gas or liquids.

Nominal sizes:
Threaded connection: G1/4 to G2
Flange connection: DN 15 to DN 80

Operating pressures up to 10 bar (1000 kPa)

MEA Flow Control Valves
